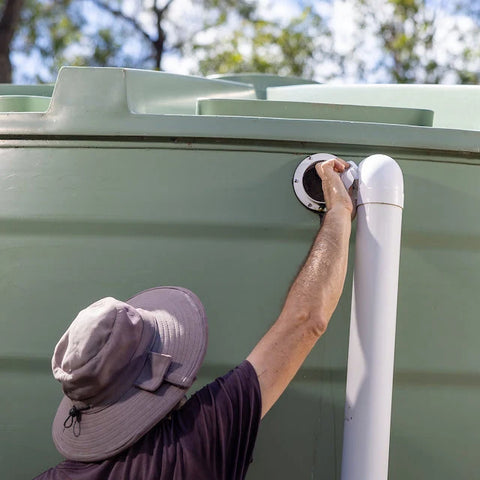

• If present, remove the existing stormwater fittings from the overflow of the tank.
• Remove Elbow piece if connected
• Check inside the tank the fitting type, elbow or straight, to set fill height later

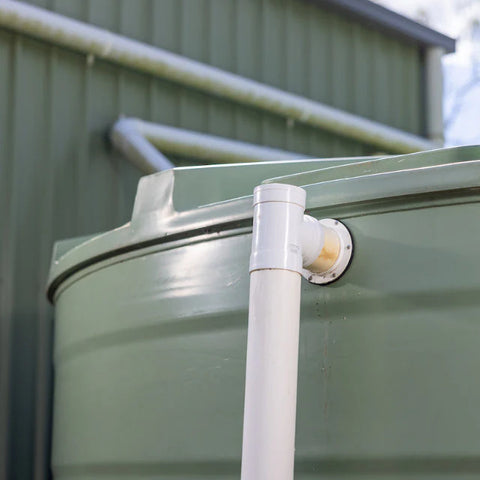

• Test fit the new 90mm T-Piece
• Check if an extension piece is needed.
• If yes, cut the additional required piece to suit.
• Cut the cable tie of the sensor cable without damaging the cable.

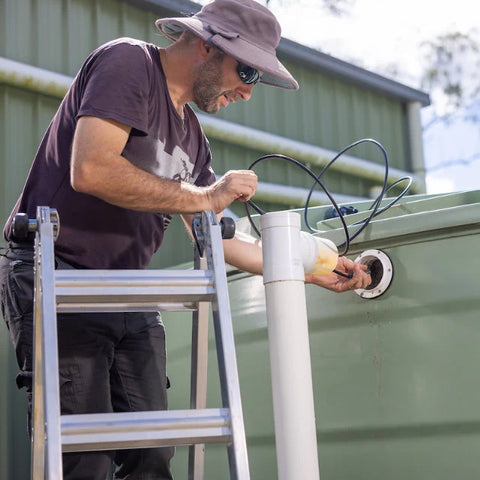

• Insert the sensor from the top and pull it out of the middle of the T-piece.
• Gently insert the sensor into the tank, including the excess cable.
• Apply sealant to joints. Set the T-Piece on top of the stormwater pipe and connect it to the tank.

IMPORTANT: Ensure no sealant is transferred to the metal piece of the sensor

• Set Node on top of the T-Piece.
• Secure Node with three screws to the T-Piece utilising the enclosure tabs.

IMPORTANT: Do not pull the sensor back out until sealant has cured

NOTE: When installing over a high-flow outlet, extend the neck at least 150mm to let the water pass
